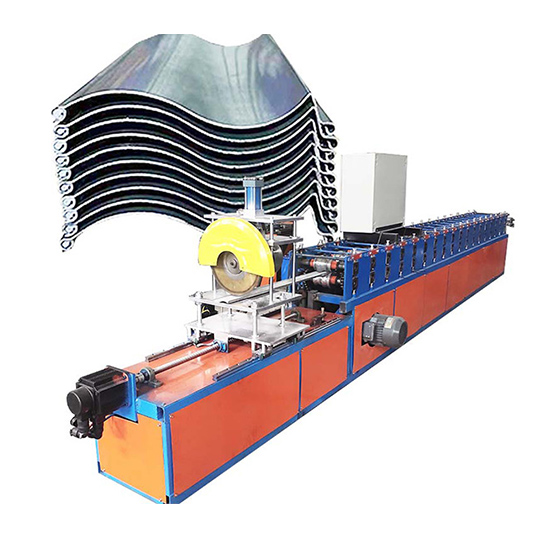

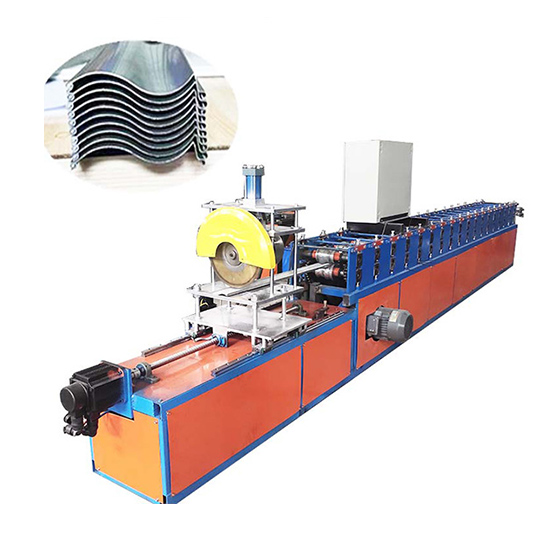

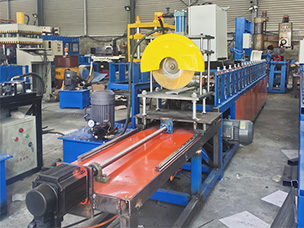

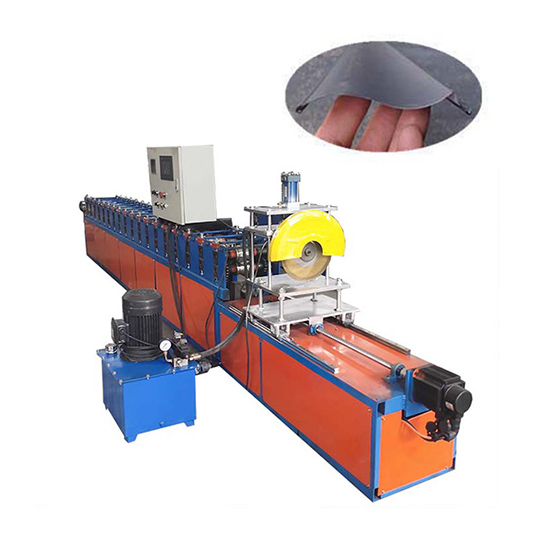

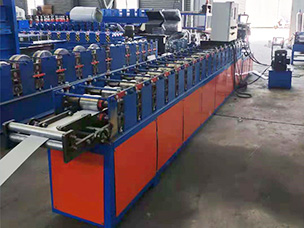

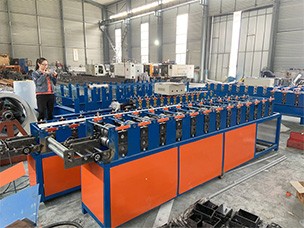

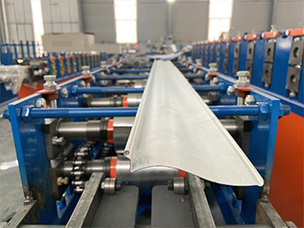

Strip Building Material Shutter Door Making Machine

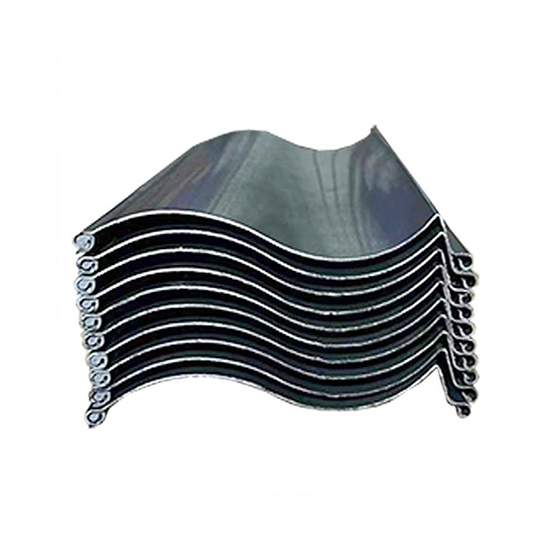

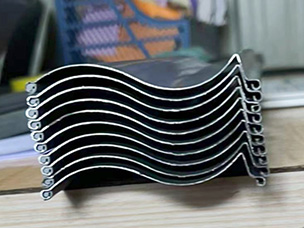

Door Frame Making Machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors.
Description
Door Frame Making Machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.
Product Details
Parameter
No |
Item |
Data |
1 |
Raw material width |
300-600 mm |
2 |
Sheet effective width |
80-200 mm |
3 |
Raw material |
Color steel sheet , Stainless steel or galvanized steel sheet |
4 |
Material thickness |
0.3-0.8 mm or customized |
5 |
Forming roller material |
45# steel plated with chrome |
6 |
Shaft diameter |
40 mm |
7 |
Forming roll station |
8-16 steps |
8 |
Main motor power |
3 KW 4 KW 5.5 KW(according to type) |
9 |
Hydraulic power |
4 KW (according to type) |
10 |
Control system |
PLC control |
