Sandwidch Panel Forming Machine

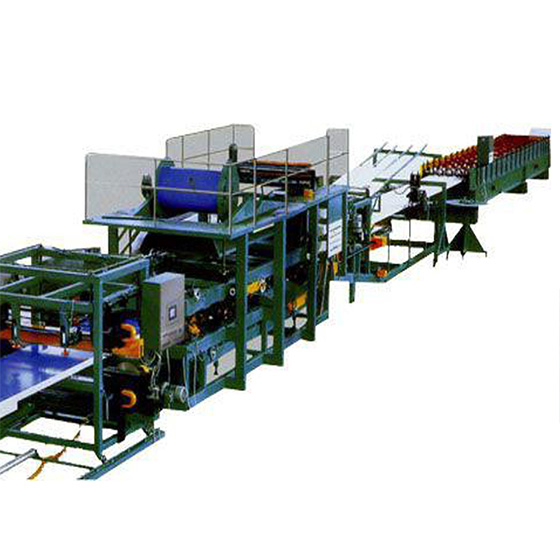

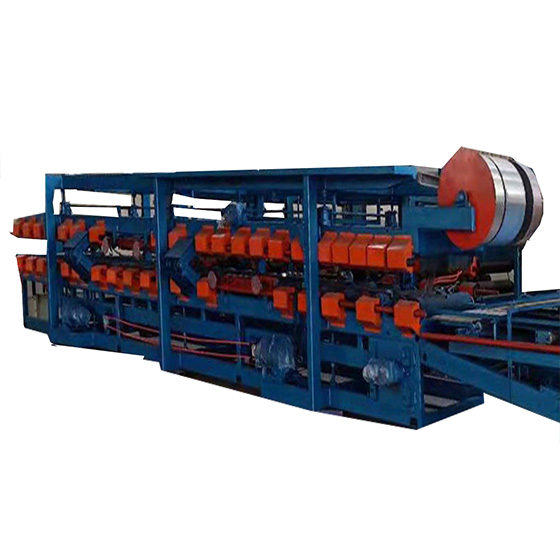

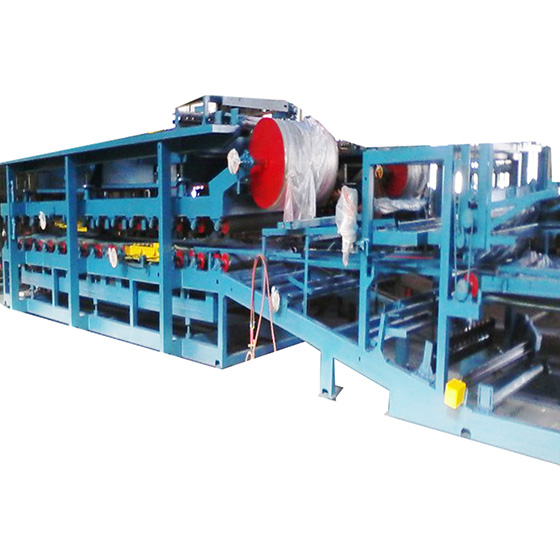

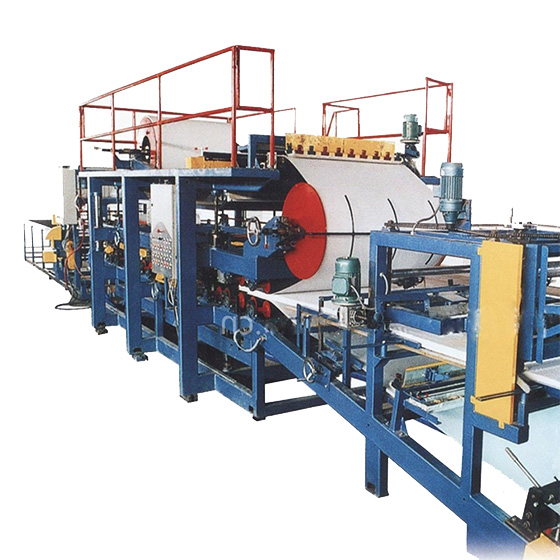

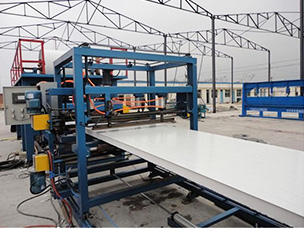

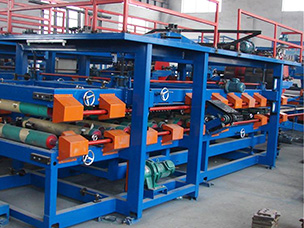

Color steel sandwich panel production line is mainly composed of a corrugated board press and a color steel composite machine, which can produce wall color steel sandwich panels and roof color steel sandwich panels at one time, and the corrugated board press and composite machine can be independent produce. The profiling part of the entire assembly line is composed of a color steel decoiler, a cold roll forming machine, and a cutting device.
Description

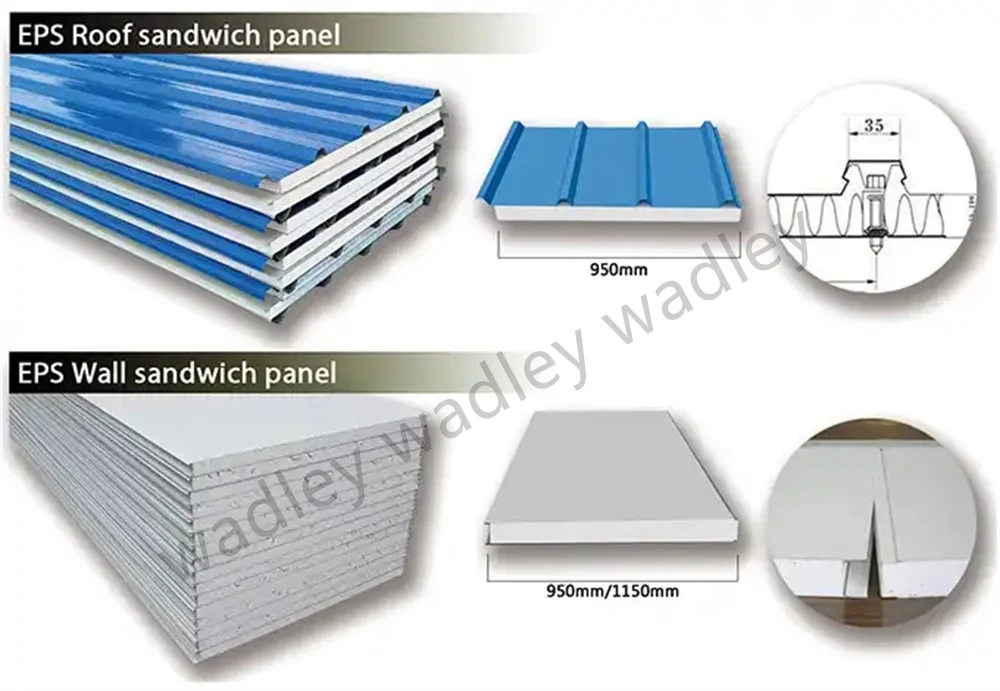

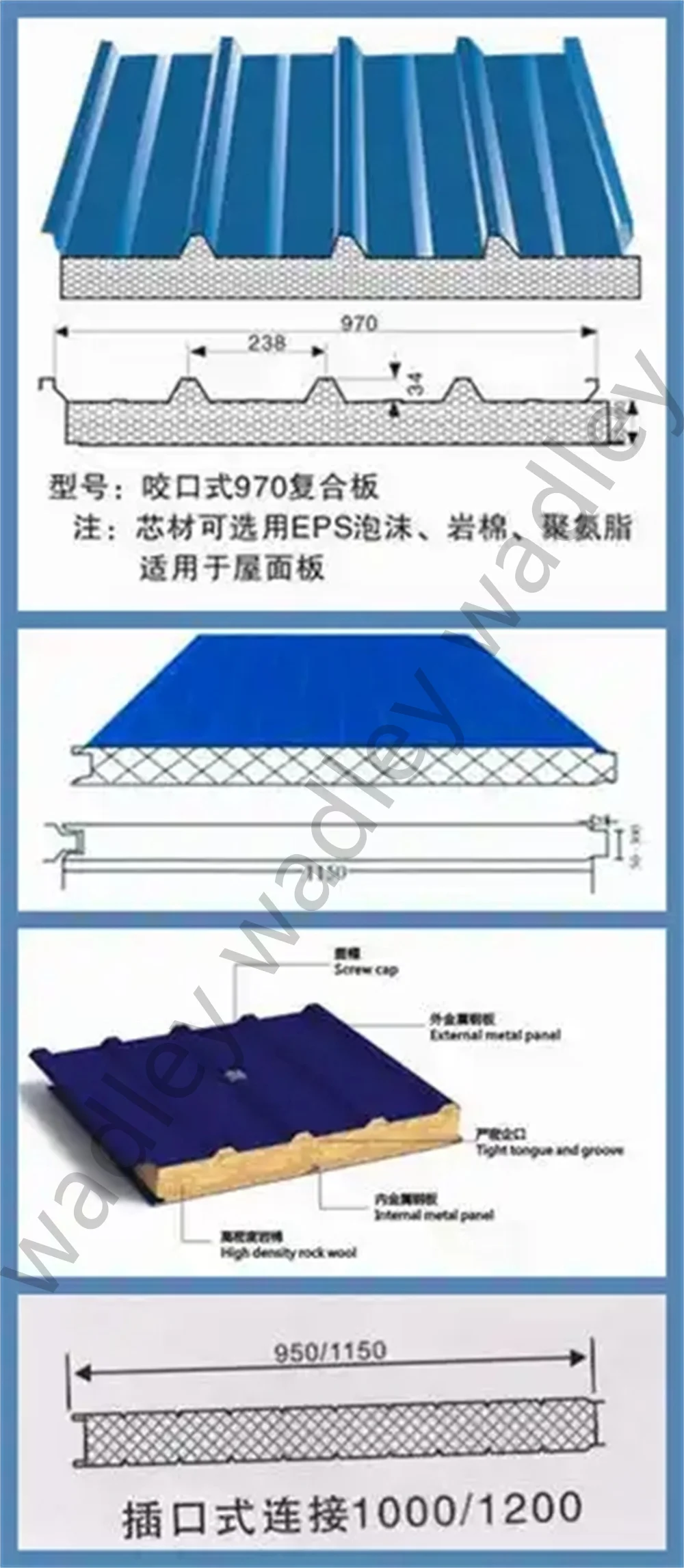

Color steel sandwich panel production line is mainly composed of a corrugated board press and a color steel composite machine, which can produce wall color steel sandwich panels and roof color steel sandwich panels at one time, and the corrugated board press and composite machine can be independent produce. The profiling part of the entire assembly line is composed of a color steel decoiler, a cold roll forming machine, and a cutting device.

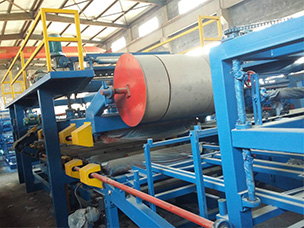

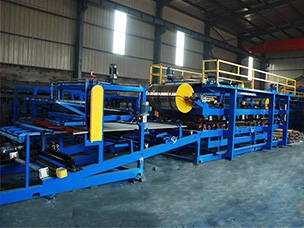

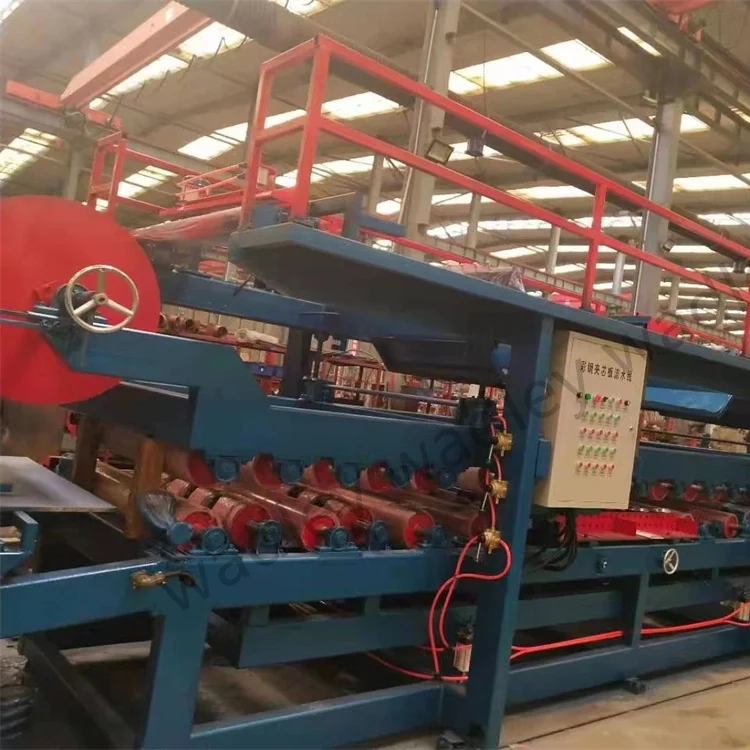

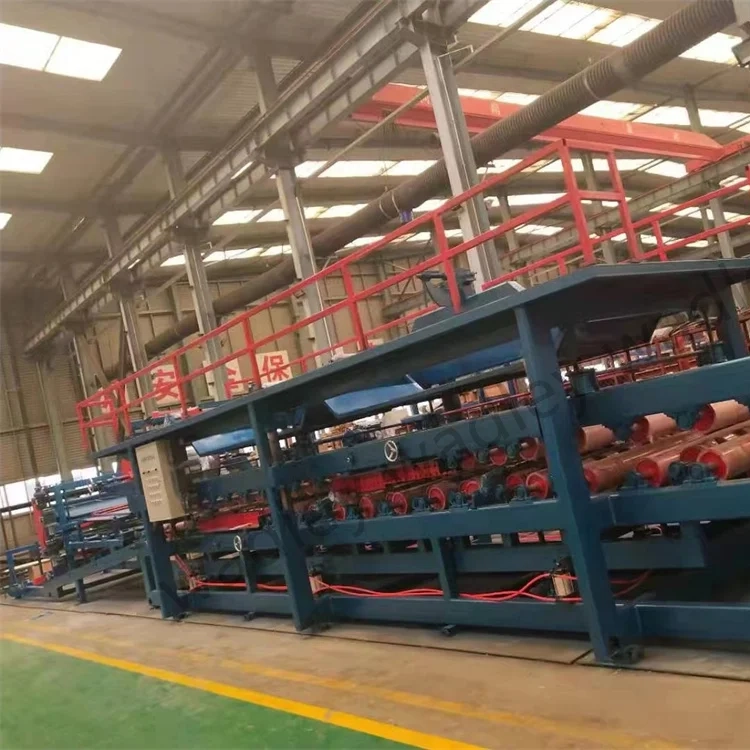

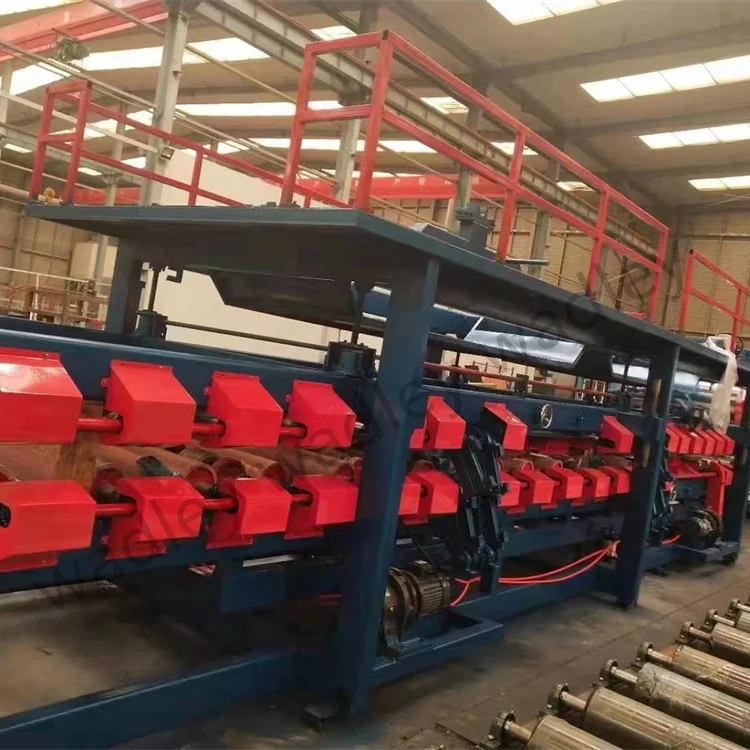

Whole sandwich panel production line is composed of a color steel decoiler, EPS board and rock wool board conveying, wall surface shallow wave crest pressing, mixed glue coating, heating and pressurizing , Composite, flat crimping, tongue-and-groove flanging, grooving, edge trimming, pneumatic clamping, automatic laminating, automatic cutting, and finished product trailer.
Product Details
Parameter
|
No |
Item |
Data |
|
1 |
Raw material width |
1000-1200 mm |
|
2 |
Sheet effective width |
750-1000 mm |
|
3 |
Raw material |
Color steel sheet or galvanized steel sheet |
|
4 |
Material thickness |
0.3-0.8 mm or customized |
|
5 |
Insulation material |
EPS (Polystyrene) PU Rock wool Glass wool |
|
6 |
Insulation material thickness |
50-120 mm |
|
7 |
Forming roll station |
8-16 steps |
|
8 |
Main motor power |
5.5 KW(according to type) |
|
9 |
Hydraulic power |
4 KW (according to type) |
|
10 |
Control system |
PLC control |
Inquiry
Please Feel to give your inquiry in the form.We will reply you in 24 hours.
