New Color Steel Wall Roofing Sheet Tile Making Machinery

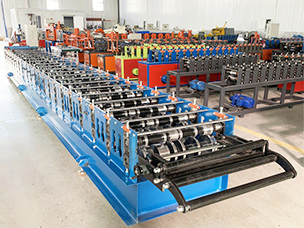

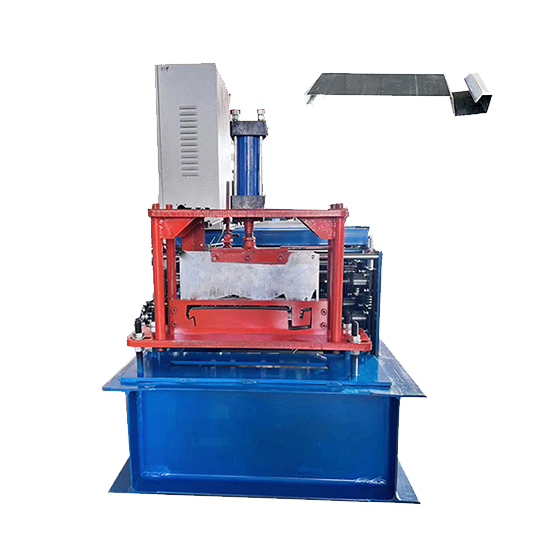

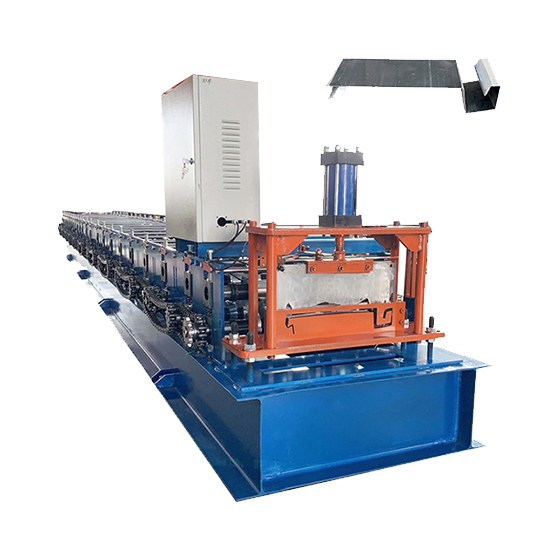

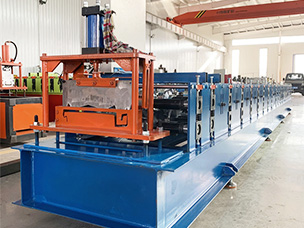

Due to plenty of the architects material have been changed into more stronger material steel, Quick Change Special Shapes Roll Forming Machine Steel has been developed and designed out. often, Special Shapes Roll Forming Machine Steel combined from feeding table, straightening device, roll forming section, punching holes or slots, and then cut off.
Description
Due to plenty of the architects material have been changed into more stronger material steel, Quick Change Special Shapes Roll Forming Machine Steel has been developed and designed out. often, Special Shapes Roll Forming Machine Steel combined from feeding table, straightening device, roll forming section, punching holes or slots, and then cut off.
Product Details
Parameter
|
No |
Item |
Data |
|
1 |
Raw material width |
1000-1200 mm |
|
2 |
Sheet effective width |
750-1000 mm |
|
3 |
Raw material |
Color steel sheet or galvanized steel sheet |
|
4 |
Material thickness |
0.3-0.8 mm or customized |
|
5 |

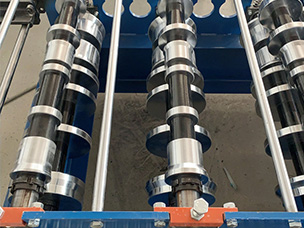

Forming roller material |
45# steel plated with chrome |
|
6 |
Shaft diameter |
70 mm |
|
7 |

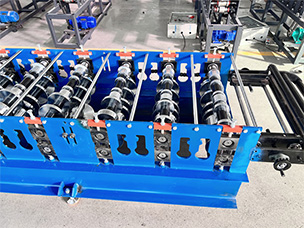

Forming roll station |
10-22 steps |
|
8 |
Main motor power |
3 KW 4 KW 5.5 KW(according to type) |
|
9 |
Hydraulic power |
4 KW (according to type) |
|
10 |
Control system |
PLC control |
