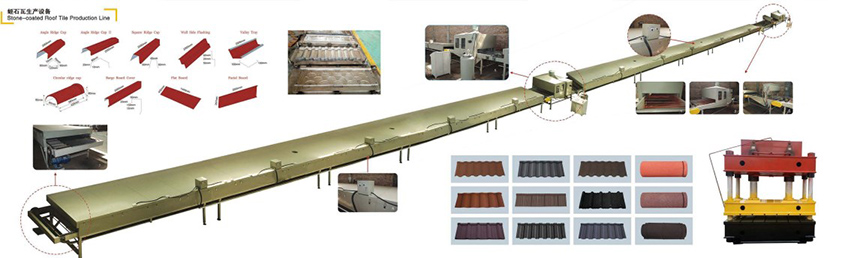

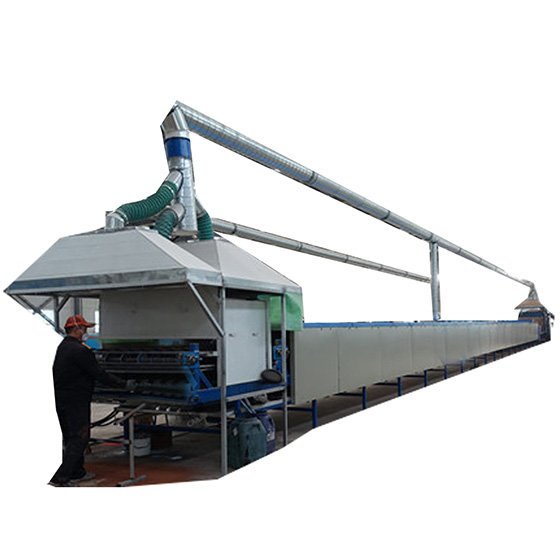

Colored Stone Tile Production Line
The color stone tile automatic production line is made by our factory technicians using advanced production technology to gas and electricity. Machinery is a whole, self-developed special equipment for colored stone tiles.
Description
The color stone tile automatic production line is made by our factory technicians using advanced production technology to gas and electricity. Machinery is a whole, self-developed special equipment for colored stone tiles. The working speed adopts frequency conversion stepless speed regulation, glue spraying, sanding, and drying are completed at one time. This equipment has been tested and improved many times on the basis of long-term operation, and has the characteristics of high efficiency, stability, energy saving, simple and easy operation.
Product Details
Parameter
|
No. |
Item |
Data |
|
1 |
Automatic spray bottom dispensing machine |
4000*1350*1600 mm |
|
2 |
Automatic sand blasting machine |
3000*1850*900 mm |
|
3 |
First drying oven |
18000*850*1200 mm |
|
4 |
Automatic spray surface glue |
3000*1650*900 mm |
|
5 |
Second drying oven |
24000*850*1200 mm |
1.Production ability : Production speed:4000-7000 pcs/day
2.Machine weight: 20 MT
3.Total installed capacity: 100 kilowatts; AC 380V 50 HZ
4.Steel plate thickness: 0.2-0.6 mm
5.Steel plate width: 1000 mm-1450 mm
6.Product condition: Plant area 2000 square meters(25 meters*80 meters),mainframe product environment temperature above 20P
7.Production line characteristics: Horizontal, continuous product, stepless frequency conversion variable speeds,PLC control, having reliable performances, easy operation.
