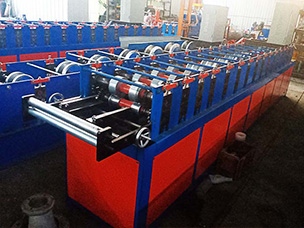

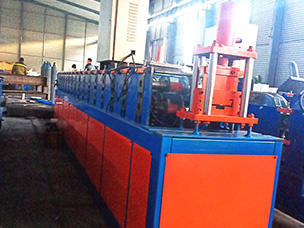

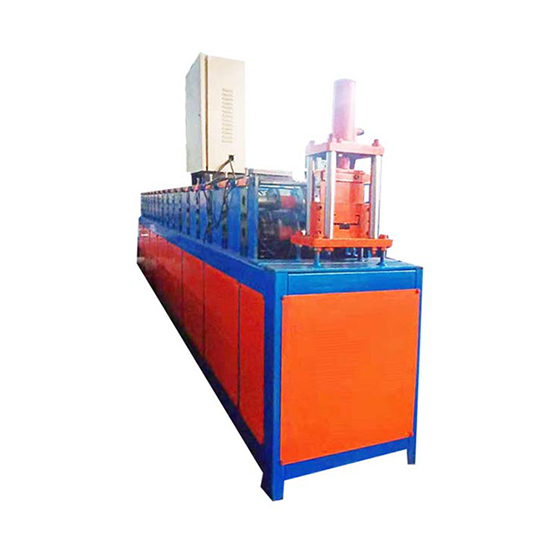

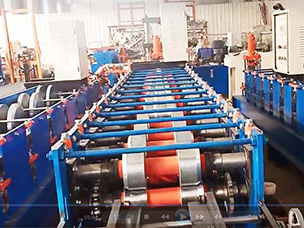

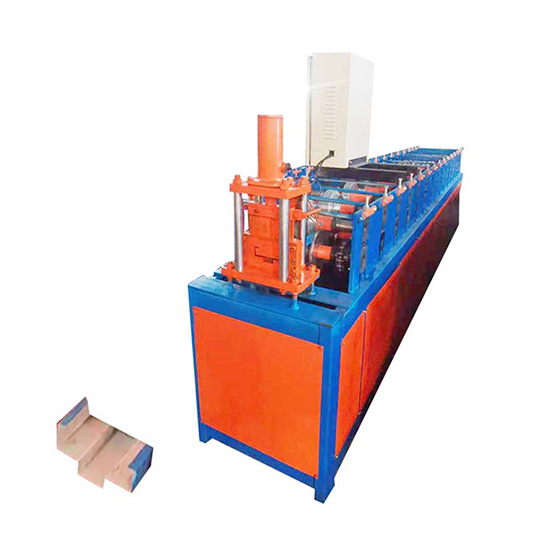

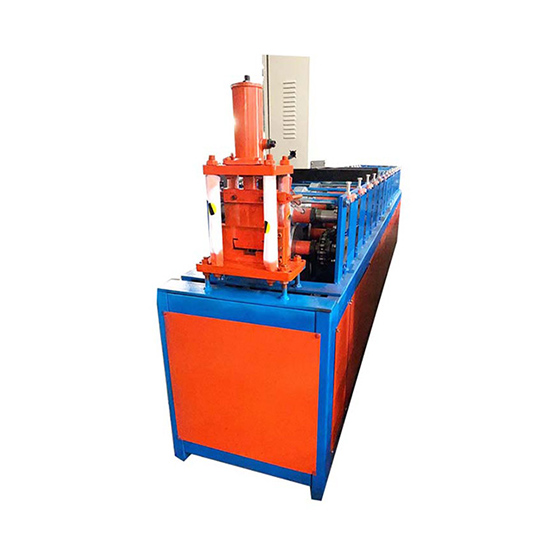

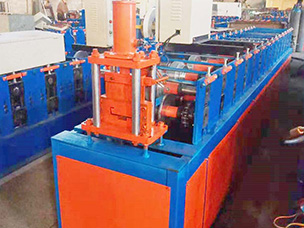

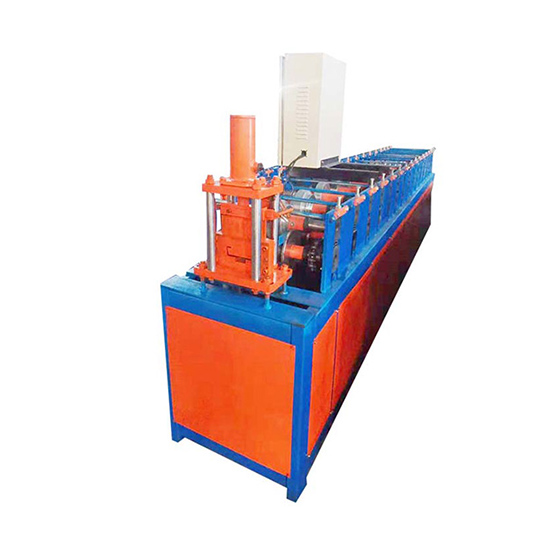

Automatic Door Frame Cold Roll Forming Machine

Door Frame Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

Send Email Get A Quote

Description Product Details Parameter Inquiry

Description

When you choose Door Frame Machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!

Product Details

Parameter

Name	Item	Specification
Material	Raw material	Galvanized steel coil GI GL PPGL or PPGI
Material	Thickness	0.3-1.0 mm

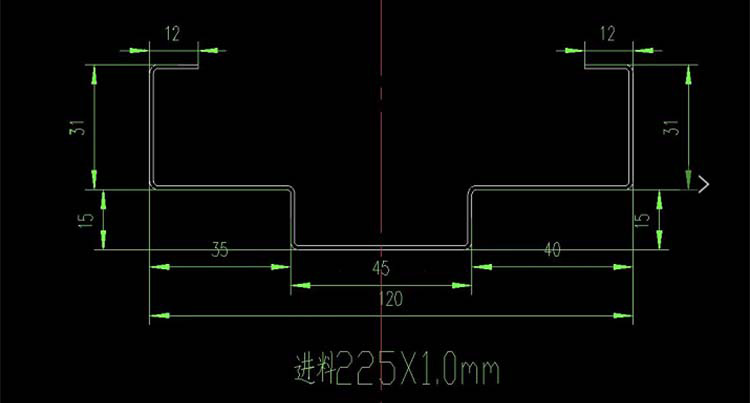

Machine	Roller station	16 or depend on customer' drawing
	Shaft diameter	75 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Working speed	8-20 m/min
Cutting blade	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	Delta made in Taiwan
Control system	PLC brand	Touchable screen
	Screen	Chinese and English or add customer need language
	Language	Chinese and English or add customer need language
Decoiler	Weight capacity	5 ton manual decoiler
Decoiler	Price	Free as gift
Receive table	Length	3 meter manual receive
Receive table	Price	Free as gift

Inquiry

Please Feel to give your inquiry in the form.We will reply you in 24 hours.
